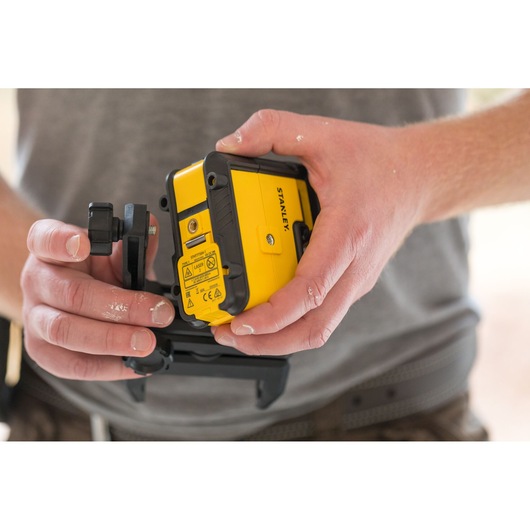

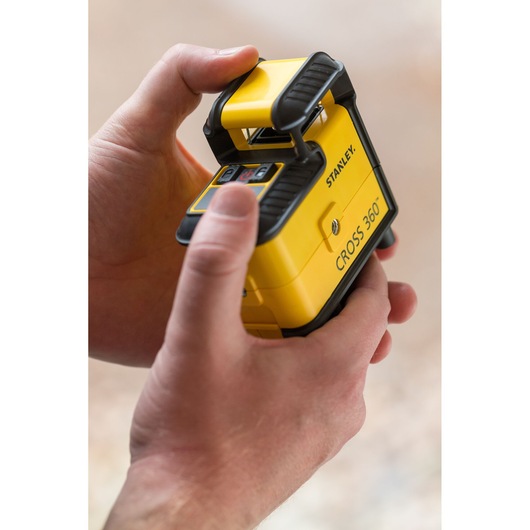

STANLEY® Cross Line 360° Laser Level Red
STHT77504-1
STANLEY® Cross Line 360° Laser Level Red

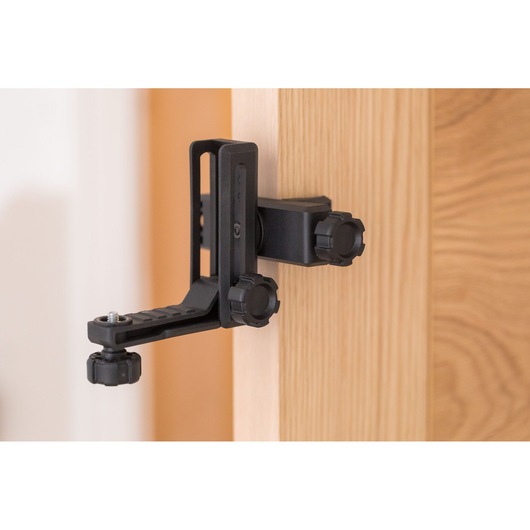

- Includes Quicklink™ bracket system and soft pouch
- CROSS LINE LASER BEAM PROJECTION: With 1 x 360° horizontal and 1 x vertical line to create a cross line
- RED BEAM LASER: With a visible working range of up to 20M
Additional Features
- PRECISION AND ACCURACY: +/- 4mm at 10m
- IP RATED TO IP50: Protects against dust
- PENDULUM LOCK: For safe transportation
- SELF LEVELING: To +/- 4°
- RUNS ON: 4 x AA batteries (supplied)

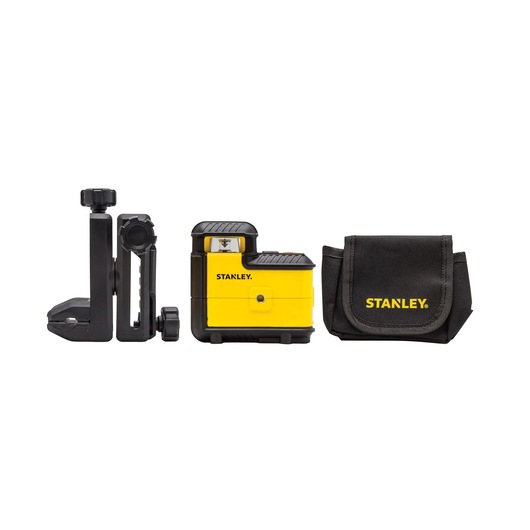

- INCLUDES: Quicklink™ bracket system and soft pouch
- 1/4” thread allows the unit to be mounted to a tripod
Specifications
|
Visible Working Distance - Radius [Metric]
|
20 m
|
|
Product Width [Metric]
|
12.5 cm
|
|
Materials Housing
|
Plastic
|
|
Laser Accuracy
|
+/-4mm@10m
|
|
CE Mark
|
Yes
|
|
Number of Beams
|
2
|
|
Product Height [Metric]
|
24 cm
|
|
Visible Working Distance [Metric]
|
20 m
|
|
Product Weight [Metric]
|
0.71 Kg
|
|
Battery Source
|
Alkaline Battery (AA)
|
|
Line Diagram
|
1 x 360° + 1 Vertical
|
|
Leveling Type
|
Self-leveling
|
|
Laser Beam Color
|
Red Beam
|
|
Display Type
|
N/A
|
|
Number of Pieces
|
2
|
|
Product Weight Gross [Metric]
|
0.71 Kg
|
|
Is it a Set
|
No
|
|
Number of Batteries Included
|
4
|
|
Product Length [Metric]
|
17.5 cm
|
|
Packaging
|
Carton
|
Support
Warranty
- 1 Year Warranty
We're confident of the quality of our products and we'll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
Service
We take extensive measures to ensure all our products are made to the very highest standards but on the rare occasion that you need our help & support, we've got you covered. Just get in touch.
