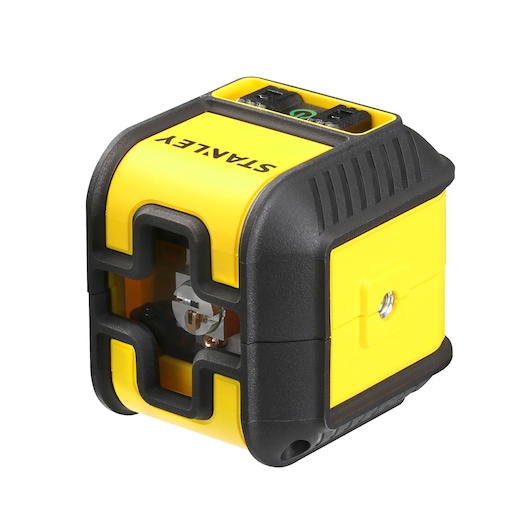

STANLEY® Cubix Cross Line Laser Green
STHT77499-1
STANLEY® Cubix Cross Line Laser Green
- Locking pendulum
- 3-position lock switch with manual mode

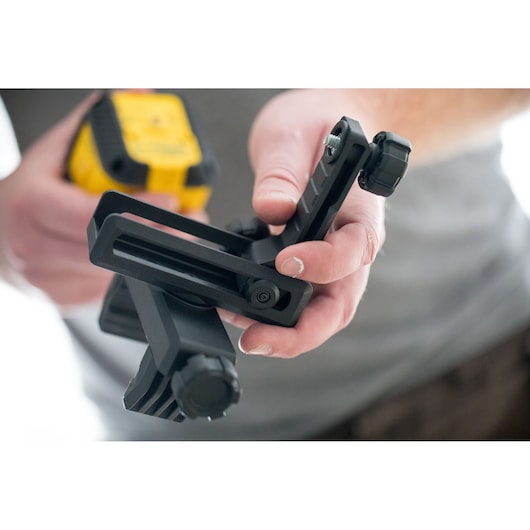

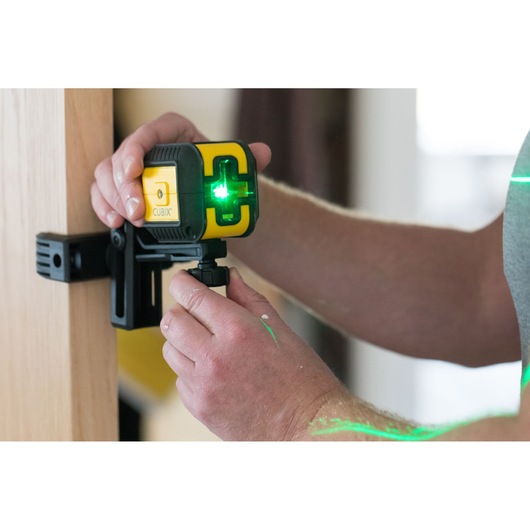

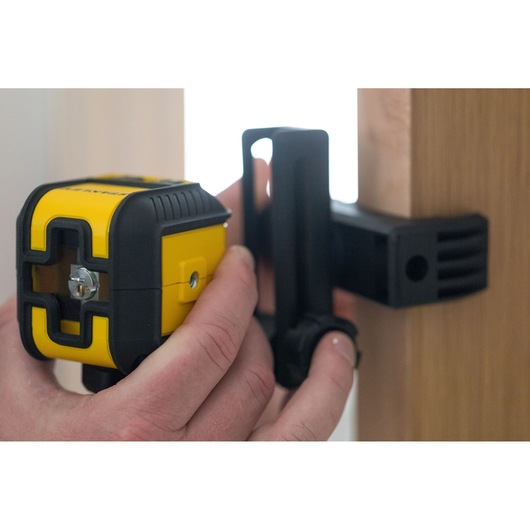

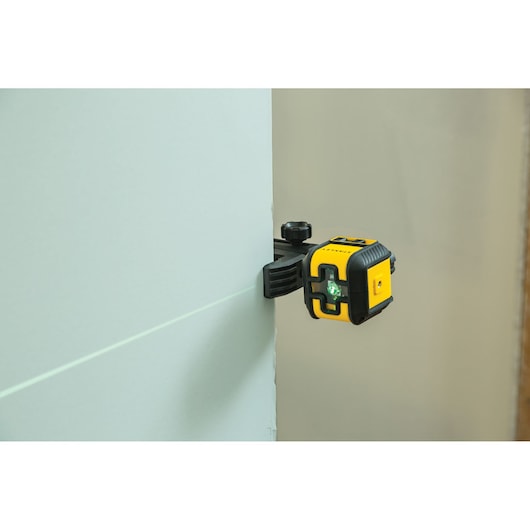

- Removable quick link bracket
Additional Features

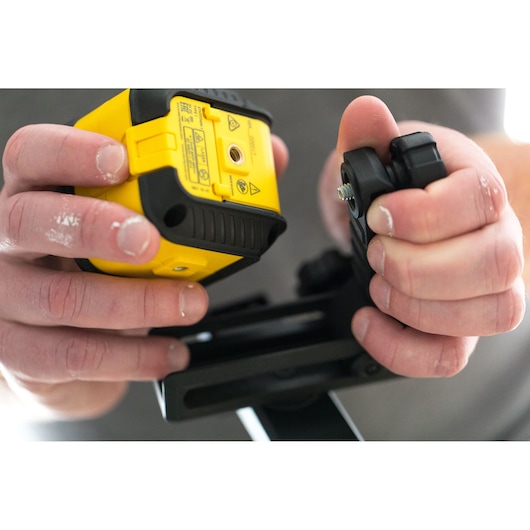

- 1/4 in. 20-thread mount for tripod use

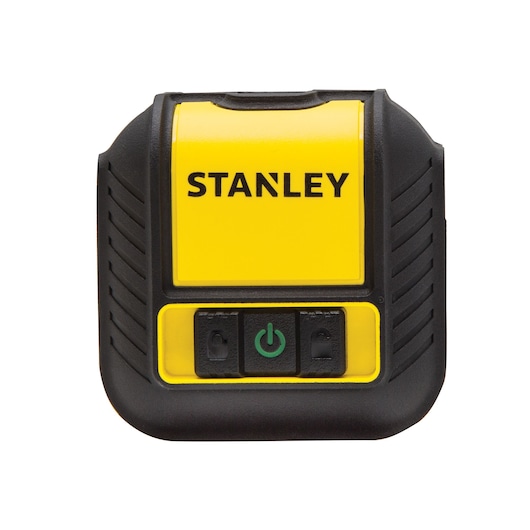

- Touchpad control panel
- Overmolded housing

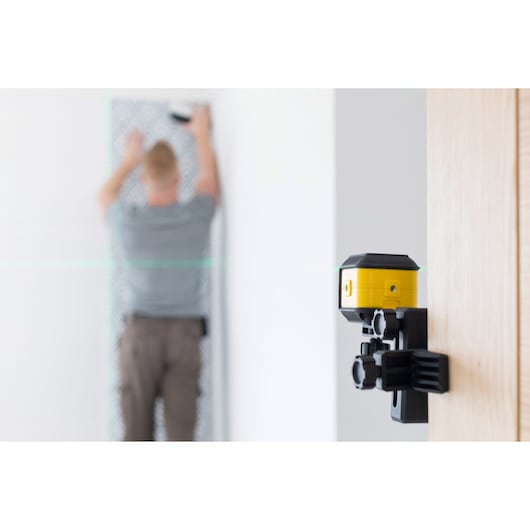

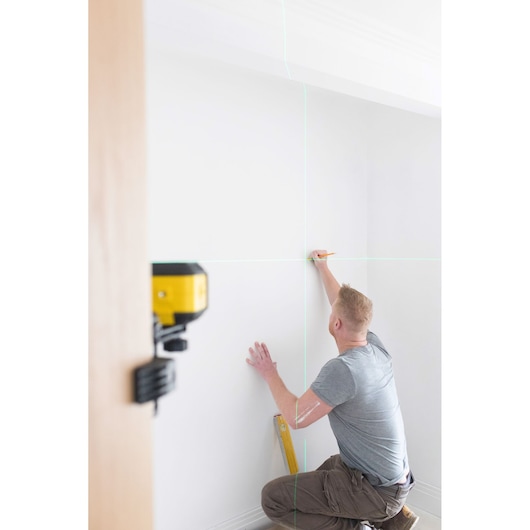

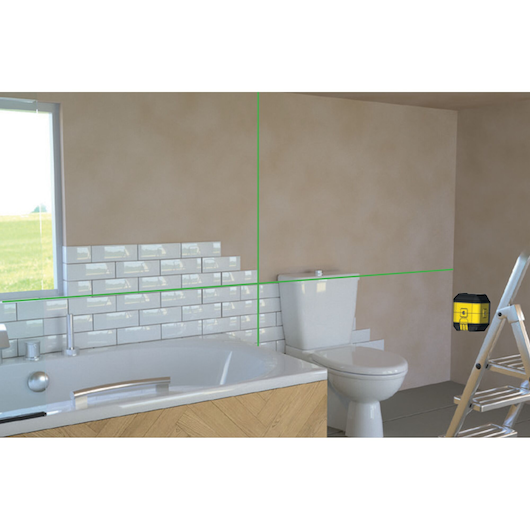

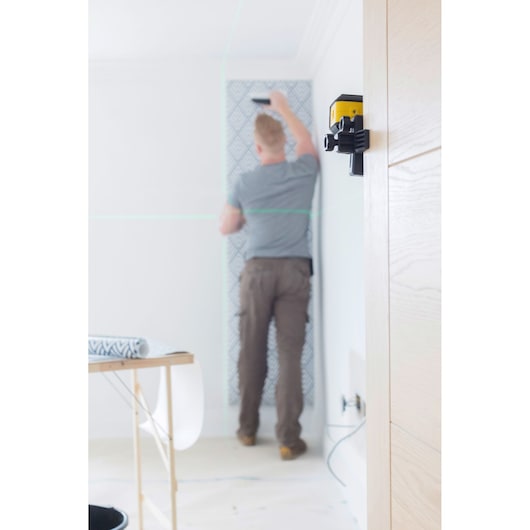

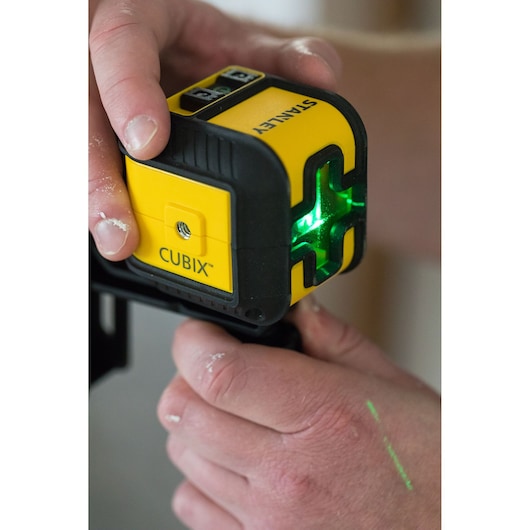

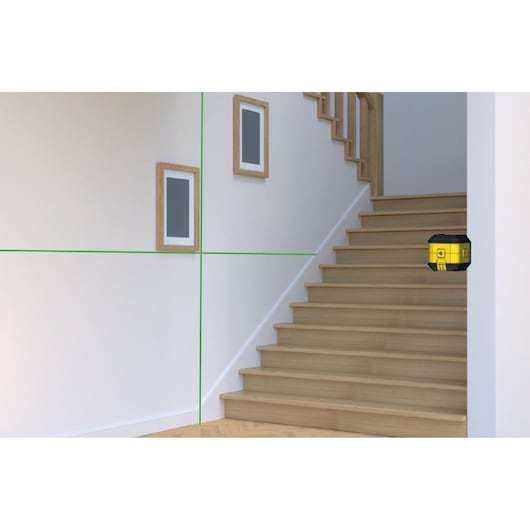

- CROSS LINE LASER BEAM PROJECTION: With 1 x 100-degree vertical line and 1 x horizontal lines to create a cross line

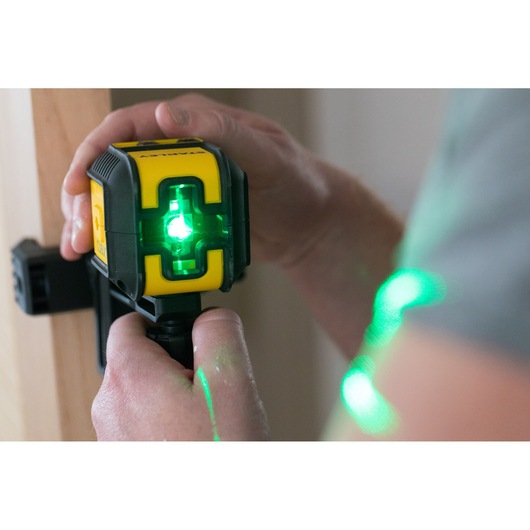

- GREEN BEAM LASER: With visible working range of up to 16M
- PRECISION AND ACCURACY: +/- 6mm at 10m
- IP RATED TO IP50: Protects against dust
- PENDULUM LOCK: For safe transportation with 3 on/ off/ manual mode
- TRIPOD THREAD: 1/4” thread allows the unit to be mounted to a tripod

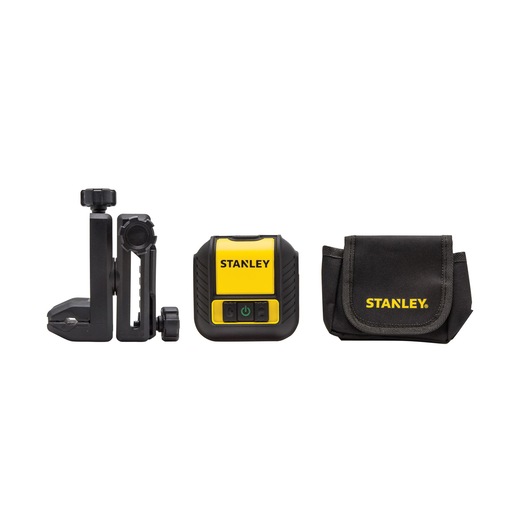

Includes
- (1) Crossline laser

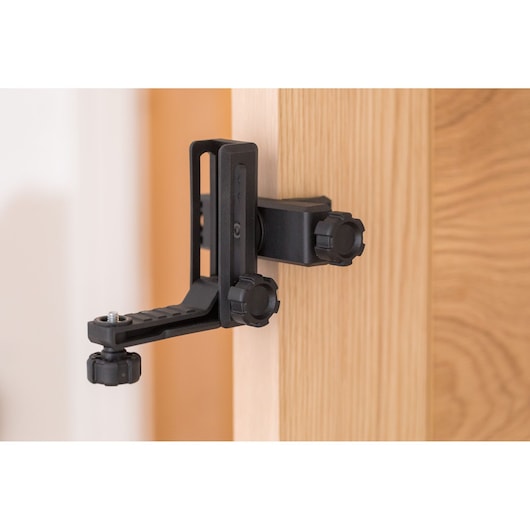

- (1) Clamp

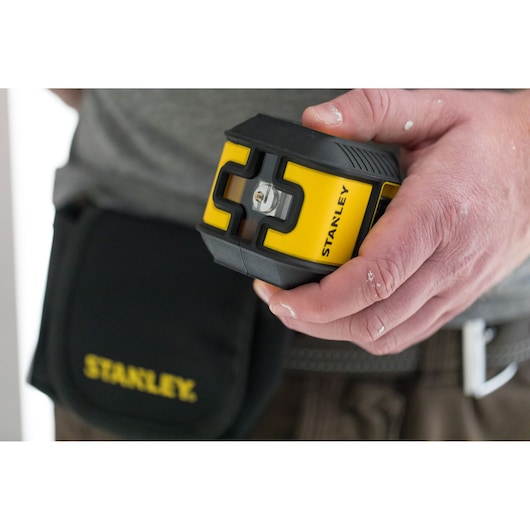

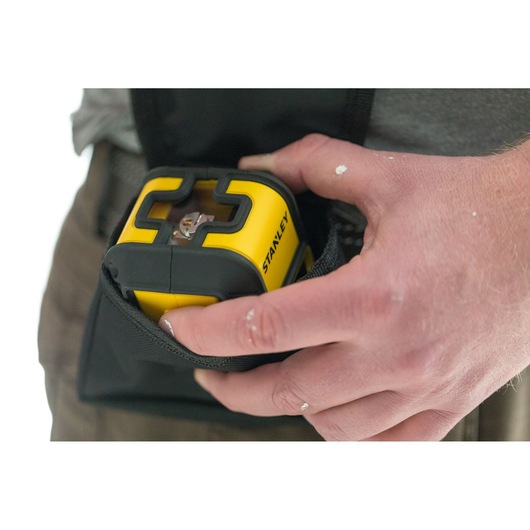

- (1) Storage pouch
- (2) Batteries
Specifications
|
Product Width [Metric]
|
17.5 cm
|
|
Materials Housing
|
Plastic
|
|
Laser Accuracy
|
+/-6mm@10m
|
|
CE Mark
|
Yes
|
|
Number of Beams
|
2
|
|
Product Height [Metric]
|
14 cm
|
|
Visible Working Distance [Metric]
|
16 m
|
|
Product Weight [Metric]
|
0.599 Kg
|
|
Battery Source
|
Alkaline Battery (AA)
|
|
Line Diagram
|
Cross Line
|
|
Leveling Type
|
Self-leveling
|
|
Laser Beam Color
|
Green Beam
|
|
Display Type
|
N/A
|
|
Number of Pieces
|
5
|
|
Product Weight Gross [Metric]
|
0.599 Kg
|
|
Is it a Set
|
No
|
|
Number of Batteries Included
|
2
|
|
Product Length [Metric]
|
23.7 cm
|
|

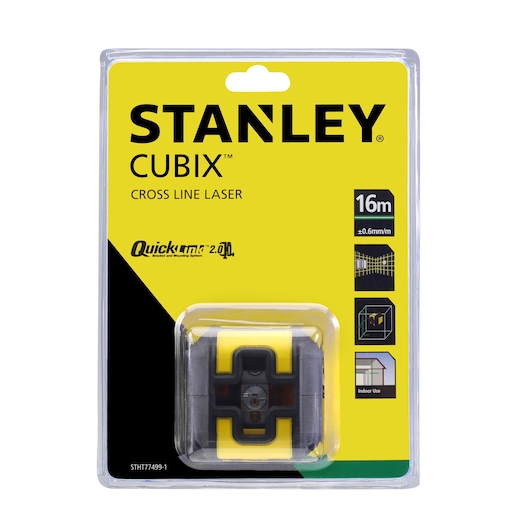

Packaging
|
Carded Blister
|
