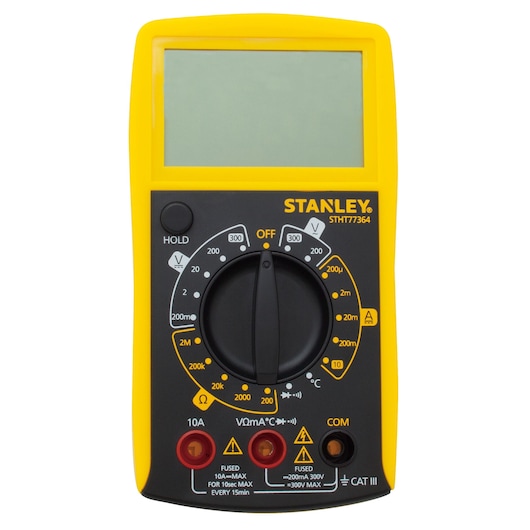

STANLEY® Multi-Meter
STHT0-77364
STANLEY® Multi-Meter
- STANDARDS: 7 functions and 20 ranges, rated for Category 3 standards CAT III
- EASY TO READ: Easy to read LCD screen with large numbers
- COMFORTABLE AND ERGONOMIC DESIGN: With a rugged over molded housing adds to shock resistance
Product Overview
Featuring 7 functions and 20 ranges, the STANLEY® Multi-Meter is designed to meet Category 3 standards CAT III. The LCD screen with large numbers ensures easy readability, while the rugged over molded housing provides shock resistance. With a frequency range of 40Hz-400Hz, this multi-meter can test different types of batteries and offers voltage, continuity, current, diode check, and resistance functions. It operates on a single 9V battery, making it a reliable tool for a range of tasks.
Additional Features
- FREQUENCY RANGE: 40Hz-400Hz
- TEMPERATURE RANGE: 0°C - 1000°C
- BATTERY TESTING: Tests AAA, AA, C, D, 1.5 volt, button cell, and 9 volt batteries
- VOLTAGE AC: 200V/300V Voltage DC: 200mV/2000mV/20V/200V/300V
- CONTINUITY: <30Ω
- CURRENT DC: 200μ/2000μ/20m/200m/10A
- DIODE CHECK: 2,8V/1mA
- RESISTANCE: 200Ω/2000Ω/20kΩ/200kΩ/2000kΩ
- RUNS ON: 1 x 9V battery (supplied)
Specifications
|
Clips Supplied
|
No clip
|
|
Has CE Mark?
|
Yes
|
|
Is Battery Included?
|
No
|
|
Is it a Set?
|
No
|
|
Number Of Pieces
|
1
|
|
Ohmmeter Range [MΩ]
|
2 MΩ
|
|
Packaging
|
Blister
|
|
Product Height [mm]
|
240
|
|
Product Length [mm]
|
157
|
|
Product Weight [Kg]
|
0.259
|
|
Product Width [mm]
|
40
|
|
Standards / Norms
|
2011/65/EU (RoHS), 2014/30/EU (EMC), 2014/35/EU (LVD)
|
|
Tester & Multimeters Type
|
Automotive Multimeter
|
|
Voltage [V]
|
200-300
|
