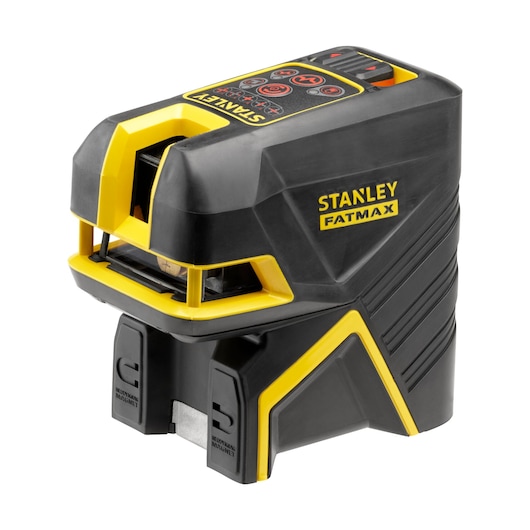

STANLEY® FATMAX® Cross Beam and 5-Spot Laser Level Red

STANLEY® FATMAX® Cross Beam and 5-Spot Laser Level Red

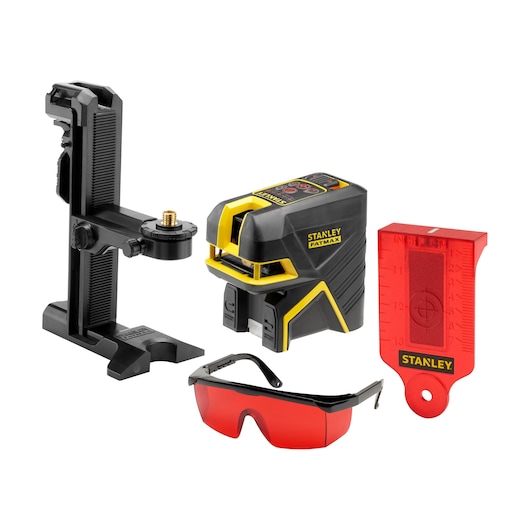

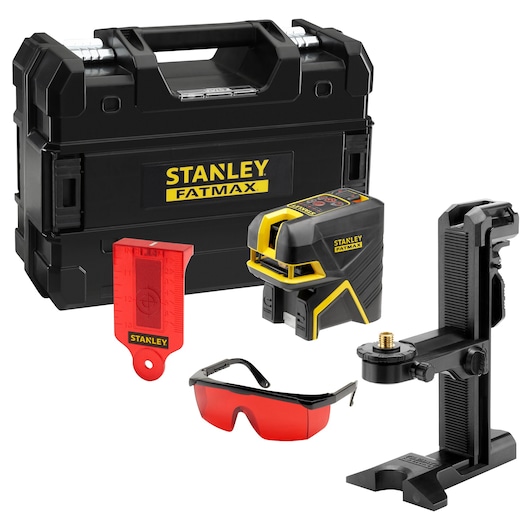

  • Multi-Bracket, Target, Glasses

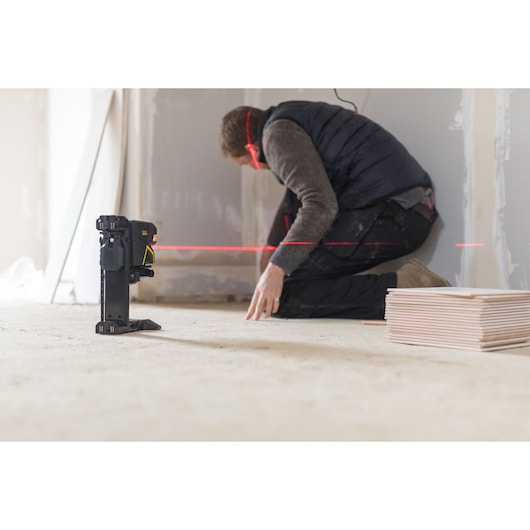

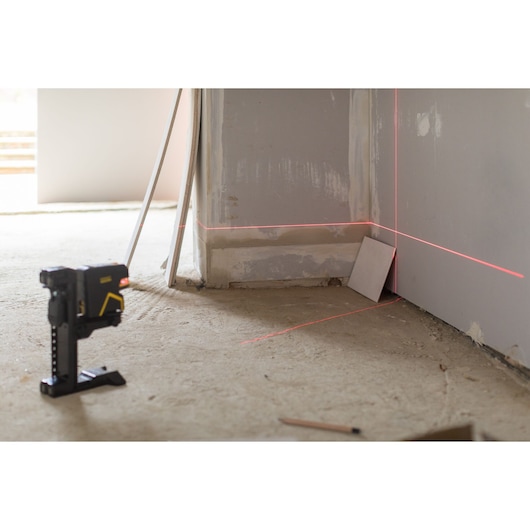

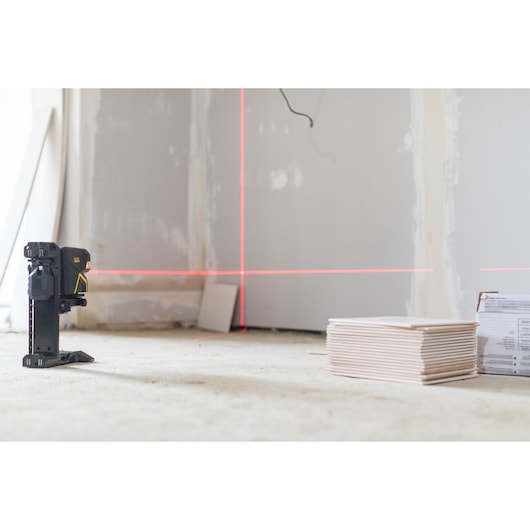

  • CROSS LINE LASER BEAM PROJECTION: With 1 x horizontal and 1 x vertical line to create a cross line plus 2 independent spot points (plumb up and down)
  • RED BEAM LASER: With a visible working range of up to 20M; up to 50M with a detector
View more features

Product Overview

FATMAX® cross - 5 spot - red

Additional Features

  • PRECISION AND ACCURACY: +/- 3mm at 10M
  • IP RATED TO IP54: Protects against dust and water spray
  • PENDULUM LOCK: For safe transportation
  • PULSED BEAM MODE: Allows for use with a detector over an extended working range, up to 50m
  • RUNS ON: 4xAA NiMH (supplied)
  • INCLUDES: Multi Bracket, Glasses, Battery Charger
  • TRIPOD THREAD: 1/4” & 5/8" thread allows the unit to be mounted to a tripod
  • DOWN BEAM: With raised clearance provides line visibility and alignment for all track layout
  • 150° FAN ANGLE: Providing ample coverage with little set-up time


  • (1) Kit box


Working Distance with Detector [Metric]
50 m
Product Width [Metric]
35 cm
Materials Housing
Laser Accuracy
Battery Run Time Hrs.
CE Mark
Number of Beams
Product Height [Metric]
18 cm
Visible Working Distance [Metric]
20 m
Product Weight [Metric]
3.476 Kg
Battery Source
Alkaline Battery (AA)
Line Diagram
5 Spots
Leveling Type
Laser Beam Color
Red Beam
Display Type
Number of Pieces
Product Weight Gross [Metric]
3.476 Kg
Is it a Set
Number of Batteries Included
Product Length [Metric]
43.5 cm
Plastic Case


1 Year Warranty
