FMHT1-77415

Cross Beam and 5-spot Laser Level (red)

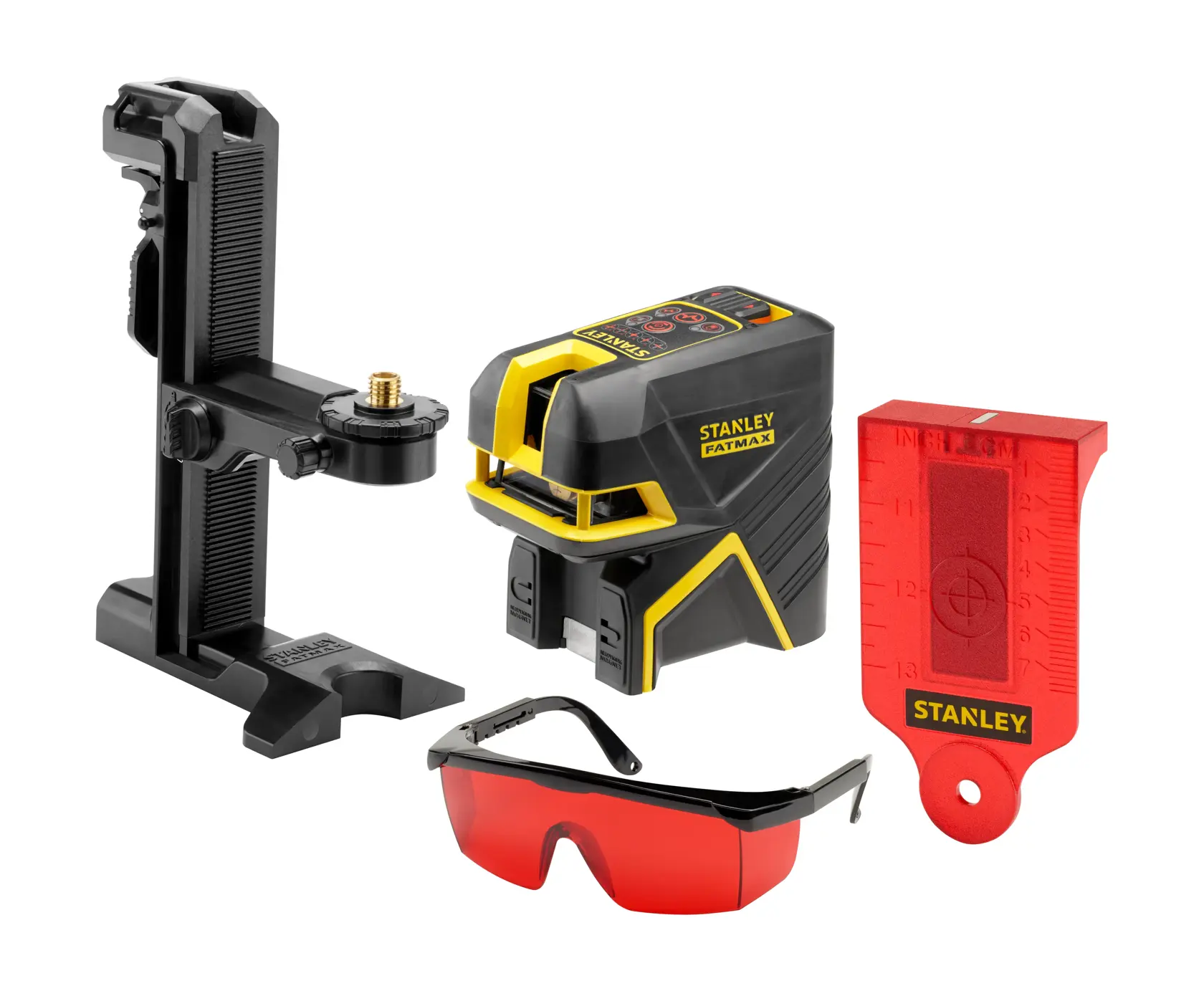

Stanley FATMAX laser level kit with case, bracket, red target, and safety glasses.

Product details

FATMAX® cross - 5 spot - red

  • Cross Line Laser Beam Projection: With 1 x horizontal and 1 x vertical line to create a cross line plus 2 independent spot points (plumb up and down)
  • Red Beam Laser: With a visible working range of up to 20m; up to 50m with a detector
  • Precision and Accuracy: +/- 3mm at 10m
  • IP Rated to IP54: Protects against dust and water spray
  • Pendulum Lock: For safe transportation
  • Pulsed Beam Mode: Allows for use with a detector over an extended working range, up to 50m
  • Runs on: 4xAA NiMH (supplied)
  • Includes: Multi Bracket, Glasses, Battery Charger
  • Tripod Thread: 1/4-in & 5/8-in thread allows the unit to be mounted to a tripod
  • Down Beam: With raised clearance provides line visibility and alignment for all track layout

Product Type
Line Laser Level
Power Source
Unpowered
Total Number of Batteries
4
Color
Black
Measurement Accuracy
± 3mm @ 10 m

  • (1) Kit box

  • 1 Year Limited Warranty
